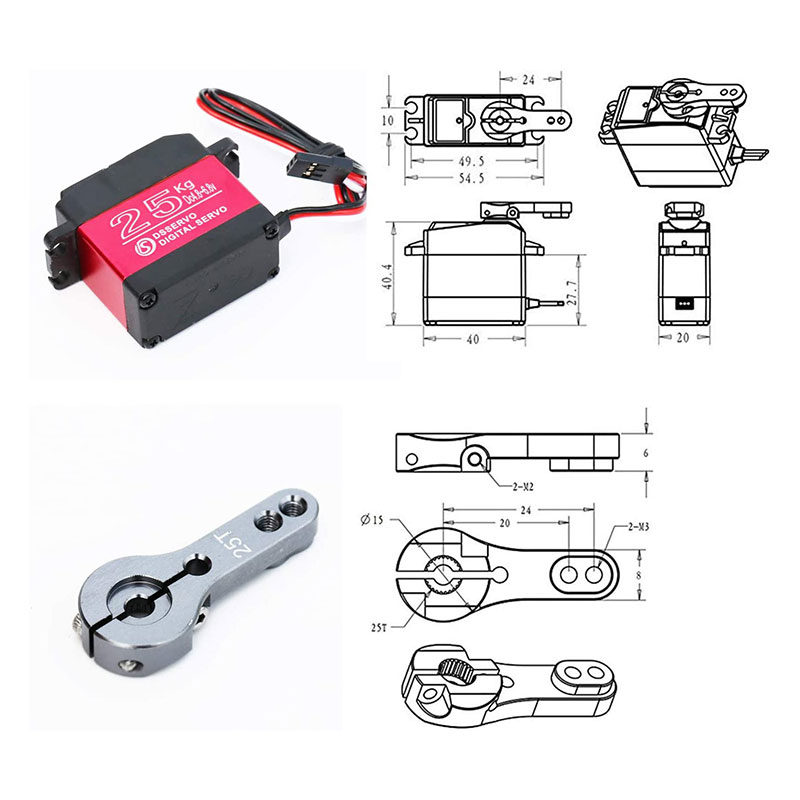

PT6051 25kg Waterproof Super Torque Metal Gear Digital Servo

PT6051 25kg Waterproof Super Torque Metal Gear Digital Servo

  • Product Code : PT6051
  • Availability : 989
  • $10.90

Amazon to buy



Specification:


DS3225 servos are ideal for cars, airplanes ,and robots.


High-speed big torque digital servos.


Less Noise, light weight. Stable and water-proof


Power cord is longer up to 15.75inches(40cm), and also send with a 25T adjustable metal servo arm


Operating voltage range: 4.8 - 6.8V


Operating speed ( 5.0V ): 0.15 sec/60 degree


Operating speed ( 6.8V ): 0.13 sec/60 degree


Stall torque ( 5.0V ): 21kg/cm


Stall torque ( 6.8V ): 25kg/cm


Control System: PWM(Pulse width modification)


Pulse width range: 500~2500 μsec


Neutral position: 1500μsec


Running degree: 270° (when 500~2500 μsec)


Dead band width: 3 μsec


Operating frequency: 50-330Hz


Rotating direction: Counterclockwise (when 500~2500 μsec)


Gear ratio: 275


Bearing: Double bearing


Connector wire: 17.7inches(450mm)


Motor: 3-pole(s)


Waterproof performance: IP66


Package:


1 x DS3225MG Digital Servo


1 x 25T Adjustable metal servo arm
