0.96 inch OLED with White/Blue/Yellow&Blue color,128x64 resolution. The driver IC is SSD1306 with I2C interface.

It is OLED display without backlight and it is low power dissipation .The thickness of galss is only 1.4mm.

It is highlight.It is full viewing angle and wide operating temperature .Supported voltage: 3V-5V DC

We have the datasheet of display.It is specification,driver IC,driver code and connection of the hardware.We also have the technical support.

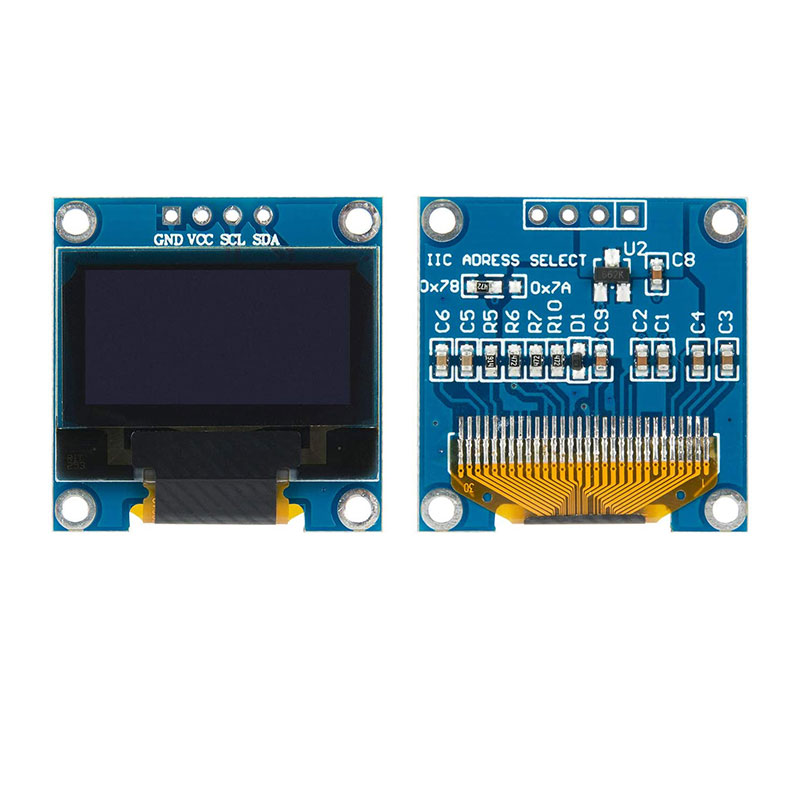

The default value of IIC address is 0x3c.

Product Specification

Size:0.96 inch

Number of Pixels:128x64

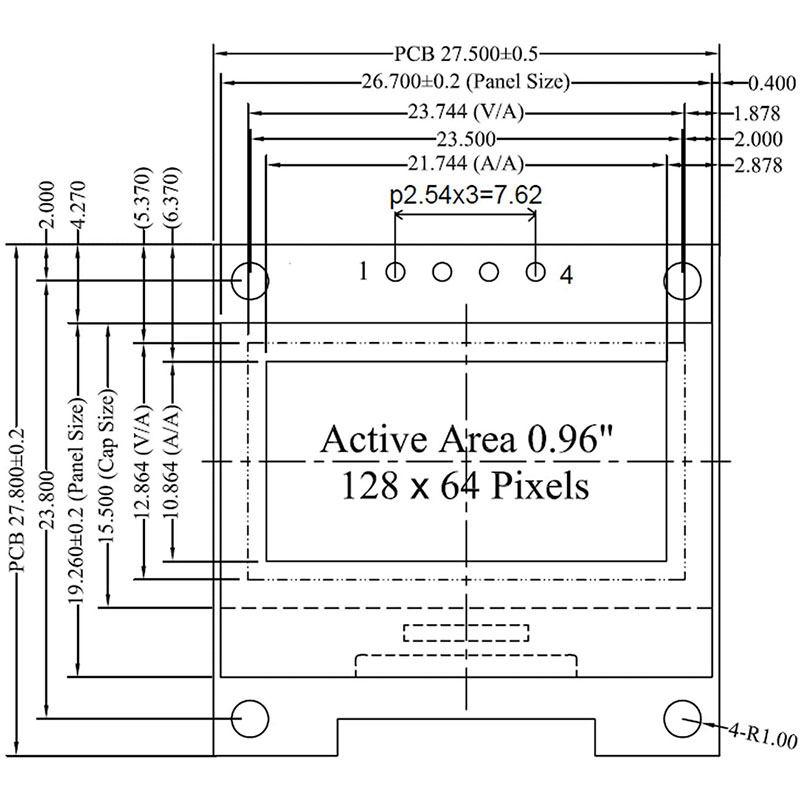

Outline dimension:27.5x27.8x2.67m

Active Area:21.744x10.864mm

Pixel Pitch:0.17x0.17mm

Pixel Size:0.154x0.154

High contrast:2000:1

Voltage：3-5V

Driver Ic: SSD1306

Interface:IIC

the brightness:80cd/m2

Wide viewing angle:160

Operating temperature:-40 to 70

Storage Temperature:-40 to 85

Weight:3g

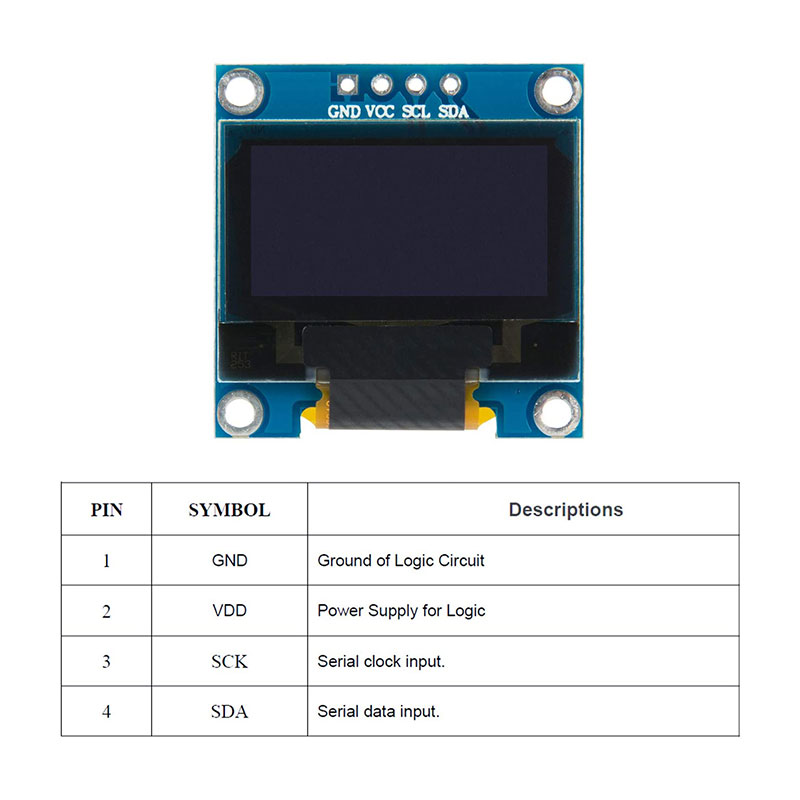

Pin Assignments

GND: Ground of Logic Circuit

VDD: Power Supply for Logic

SCL: Serial clock input

SDA: Serial data input
