The latest cut in the smallest step-down module, the biggest 3 a output.

  Areas of application:


 DIY mobile power supply, communication power supply equipment, all kinds of the volume and weight have strict requirements

 of occasions (such as aviation model, etc.).

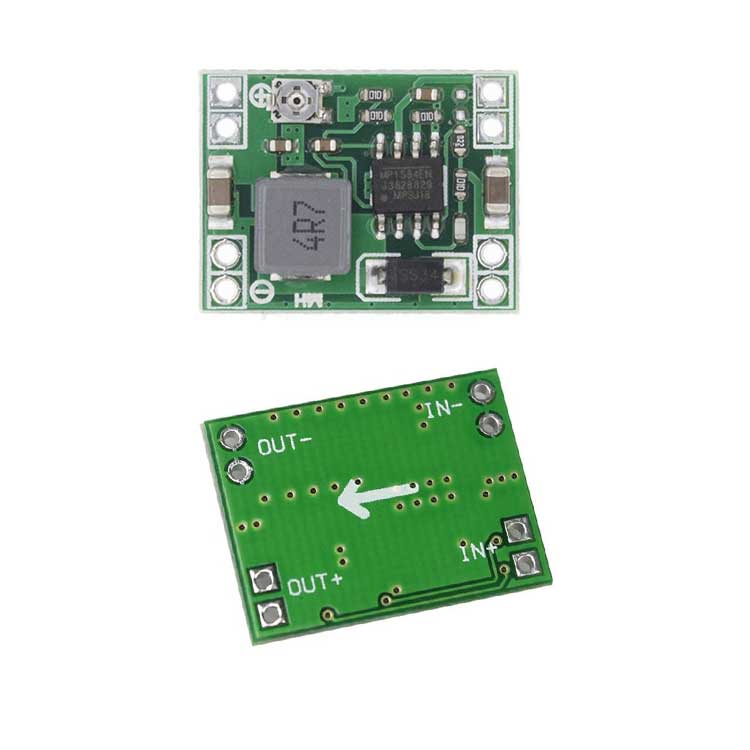

Model name:\Super small DC - DC step-down module
Input voltage: 4.5 V ~ 28 V
Output voltage: 0.8 V ~ 20 V
Output current: 3 A (Max)
Conversion efficiency: 96% (highest)
Output ripple:  < 30 mv
Switching frequency: 1.5 MHz (highest), typically 1 MHz
Working temperature: - 45 ℃ ~ + 85 ℃
Size:17 mm * 22 mm * 4 mm
